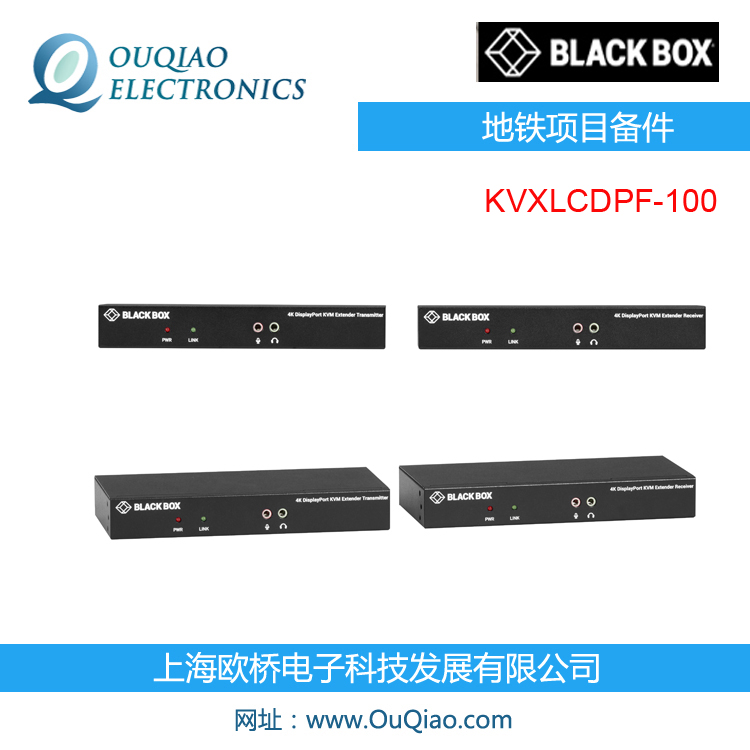

KVXLCDP BLACKBOX KVXLCDP-100 KVX系列CATx KVM扩展器套件
品牌：BLACKBOX
类别：KVX系列CATx KVM扩展器套件-4K、DisplayPort
型号：KVXLCDP-100

产品简介：
KVX系列CATx KVM扩展器套件-4K、DisplayPort、USB 2.0集线器、串行、音频、本地视频
通过CATx电缆将KVM信号扩展到100米。

产品特点：
通过标准CATx电缆传输高达100米的DisplayPort 4K传输
本地和远程单元使用两根CAT5e电缆连接，距离可达330英尺（100米）
支持DisplayPort UHD视频分辨率达3840x2160，频率为30Hz
透明USB 2.0扩展支持HID设备、大容量存储设备
支持RS-232外围（串行）设备
通过扬声器/麦克风连接实现双向音频
用于发射机（TX）单元监控的本地视频端口环回

General
Housing Material Metal Chassis
DDC Support DDC, DDC2, DDC2B
Distance (Maximum) CATx cable: Up to 328 ft. (100 m)
LED Indicators Power: Red LED;
Link: Green LED
MTBF Transmitter (TX): 137,540 Hours
Receiver (RX:) 165,620 Hours
*Using MIL-HDBK-217F (N2) Parts Count Prediction Calculator
Environment condition which is GB (Ground Benign: Business and Scientific computers included in this Environment)
Operating Temperature 32 to 122° F (0 to 50° C)
Power External 5-VDC, 2-A power supply
Resolution 3840x2160@30Hz,4K @ 30 Hz, 3008x1692@60Hz(Mac), 2560x1600@60Hz, 2560x1440@60Hz,
 2560x1440@30Hz, 1920x1200@60Hz, 1920x1080@60Hz, 1680x1050@60Hz, 1440x900@60Hz(Mac), 1366x768@60Hz,
1360x768@60Hz, 1280x1024@60Hz, 1280x800@60Hz, 1280x768@60Hz, 1152x864@60Hz, 1024x768@60Hz,
1024x600@60Hz, 800x600@60Hz
Storage Temperature -4 to +140° F (-20 to +60° C)
