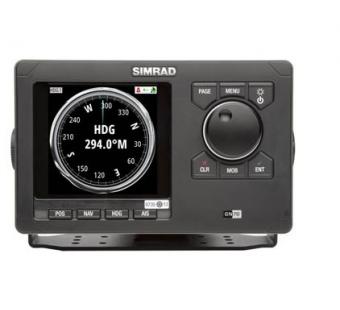

Simrad GN70 Global Navigation
The GN70 is a great addition to the current range of IMO compliant Simrad Global Navigation Systems engineered for today's professionals. The GN70 has a colour display and is designed to work together with a range of existing IMO type-approved GPS smart antennas and GPS compasses.
Convenient data interface using SimNet and NMEA 2000 Network including simple plug-and-play connectivity to other N2K enabled systems
Rotary knob for easy ‘push to enter’ functionality
IMO compliant
Dedicated hot keys for position, navigation, heading, AIS and MOB for easy access
LAN can be used to output NMEA 0183/IP messages
5” bonded display for clearer, fog-proof operation
16-bit color TFT display provides wider viewing angle
GN70 can be used with a GPS compass, which has dual IMO compliance certification for use as a primary position AND heading device
GN70 can also be used with the HS80 GPS Compass
External RTCM correction for DGPS mode with optional MX610JB junction box.
Technical
Housing:Rear housing - Aluminum, Front housing - Plastic
Display
Display Type:16-bit color TFT
Display: Backlighting:CCFL
Display Resolution [pixels x pixels]:480 x 480 (H x W)
Technical/Environmental
Mounting [S,F,B]:In-Dash (standard) U-bracket (optional)
Operating Temperature:-30°C to 55°C (22°F to 131°F)
Operating Temperature Stored:10 - 24 VDC
Waterproof Standard/rating:IPX4
Product Width:9.06 in 230 mm
Product Depth:1.61 in 54 mm
Product Height:5.6 in 144 mm
Product Weight:1.2 Kg (2.7 lbs.)
Power
Power Consumption:0.7A at 12 VDC with backlight on, 0.4A with backlight off
NMEA 2000 Load Equivalency Number:1 network load (50mA)
GPS Navigation
GPS Receiver Channels:32
Navigation: Routes:200
Navigation: Waypoint Storage : 5000
Receiver Type : L1,L2 C/A code 1.575 GHz & 1.602 GHz
GPS Antenna Type : GS70 Antenna (N2K), high-sensitivity GPS+WAAS (Americas) or GPS+EGNOS+MSAS (non-Americas)
Networking Connectors
NMEA Output:NMEA 2000, NMEA 0183 (via the MX610JB)
