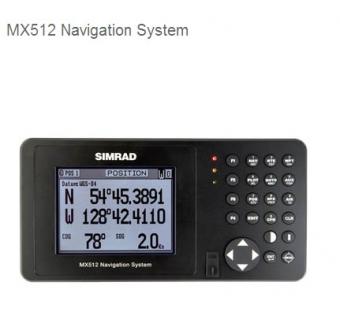

Simrad MX512 Navigation System
An IMO approved GPS display that features eight independent RS-422 and one
RS-232 serial ports for two-way communication with any NMEA 0183 compatible
device
IMO Type approved including RAIM (Receiver Autonomous Integrity
Monitoring)
Choice to save and restore Waypoints, Routes and Configuration settings
using USB device or through the built-in Flash RAM
?Multiple navigation data management options using LAN, USB or NMEA serial
ports
High speed LAN interface for Master/Slave operation (with Integrity
Monitoring) and up to 4 slave displays
9 independent serial data ports and one VGA port
Technical
Housing : Splashproof
Display
Display Type : 5.7inch B/W STN, back-lit LCD display
Display Resolution [pixels x pixels] : 320 x 240 pixels (H x W)
Technical/Environmental
Mounting [S,F,B] : Yoke or optional flush mount
CPU : Intel PXA255 XScale Processor
Memory Size : Data: 32MB RAM Program: 32MB (FLASH)
Specified Standards : IMO: MSC 112 (73), IEC 61108-1, IEC 61162-1, IEC
60945 Ed. 4
FCC: Meets FCC Part 15 subpart B
Product Width : 295 mm 11.6 in
Product Depth : 105 mm 4.1 in
Product Height : 150 mm 5.9 in
Other
Humidity Range [rh] :IEC 60945 ed4
Languages : English, Danish, Dutch, French, Finish, German, Italian,
Spanish, Swedish (Some screens may still be in English)
Type Approval : CE, USCG, CCS, Wheelmark
Power
Power Consumption : 15 watts
Power Supply (Supply Voltage) : 10.5 to 32 VDC vDC
Grounding : Chassis isolated from electrical ground
Communications
NMEA Input : DPT, DBS, DBT, DBK, GLL, HCC, HDM, HDT, MMB, MWV, RMA, RMC,
VHW, VTG, VWR, WPL, XDR, GSA, GST, GRS, GSV, GBS, RTE and ROT
Networking Connectors
Connectors : 1x -12-pin conn. for Power & Data, 1x -10-pin conn. for
Antenna, 1x -8-pin conn. for Auxillary, 2x USB, 1x RJ45 LAN, 1 x 44-Pin dB
connector for data, 1x VGA (15-Pin) connector
NMEA Output : NMEA 0183 V3.0: APA, APB, BOD, BWC, BWR, GGA, GLL, GRS, HSC,
MSK, MSS, RMB, RMC, Rnn, RTE, SNU, VDR, VHW, VPW, VTG, WCV, WPL, XTE, ZDA,
ZTG, GBS, HDT, ROT
